X8 CDM

Structural Waterproofing   >   Juta Waterproofing   >   X8 CDM
X8 CDM

JUTA X8 CDM is an 8mm thick studded cavity drainage membrane, suitable for type C waterproofing in accordance with BS 8102;2009, to provide a grade 3 environment.

Product information:

  • 2m X 20m
  • 20kg roll weight
  • 40m2 coverage

Can also be used in vaults and tunnels.

  • Typically used in basement walls and floors, internal damp proofing and waterproofing
  • Complies with the latest codes of practice as published by BS, BRE and CIRIA.
Unit Weight 0.5 kg/m2
Sheet Thickness 0.45 mm
Stud Height 7.0 mm
Colour Clear
  • Suitable for installing onto all types of concrete/stone/masonry floor slaps capable of withstanding anticipated floor loadings.

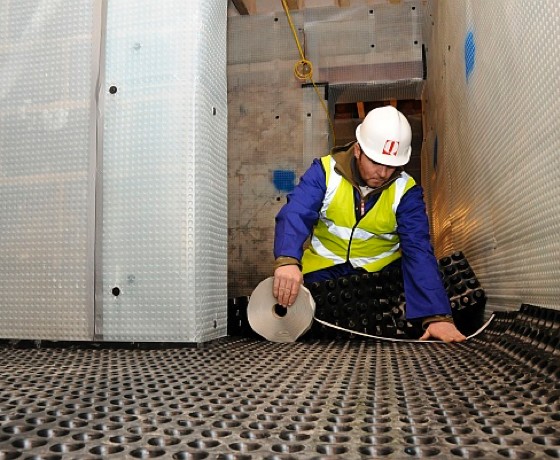

  • X8 CDM drainage membrane should be rolled out to stud down and trimmed to the perimeter walls an overlapped onto the adjacent strip by two stud overlaps sealed with a line of  GP TAPE.
  • Refer to full installation guidelines available from our Technical Department.
